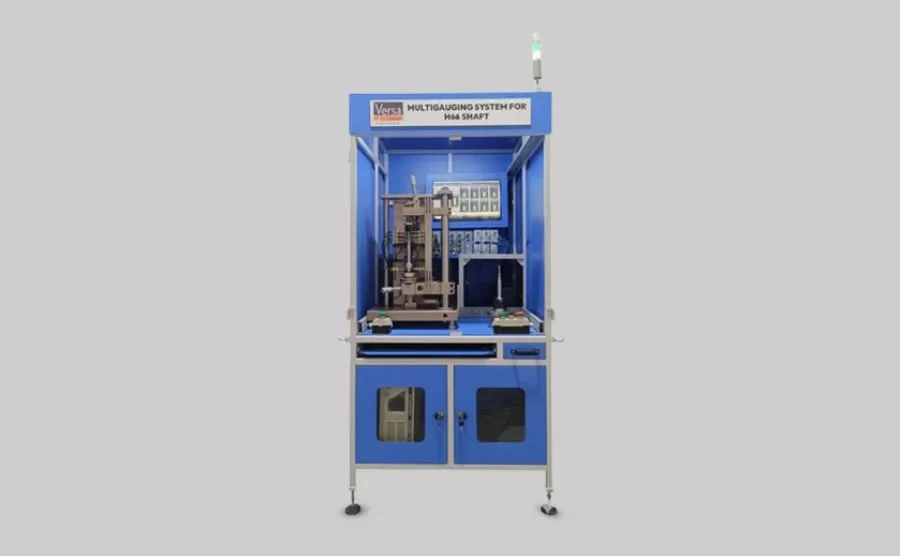

How Gauging Fixtures Improve Accuracy, Repeatability, and Productivity in Precision Manufacturing

In today’s competitive manufacturing environment, achieving consistent product quality requires more than just precision measuring instruments—it requires stable, repeatable, and application-specific inspection setups. This is exactly where gauging fixtures play a critical role in ensuring reliable measurement outcomes.

These precision inspection fixtures ensure that every workpiece is positioned in the same way during inspection, eliminating operator-to-operator variation and significantly improving measurement consistency. From automotive engine components and bearing assemblies to aerospace parts and precision-machined assemblies, such fixtures are essential for maintaining strict quality standards.

As a trusted gauging fixtures manufacturer in India, Versa Controls has been designing and manufacturing custom inspection systems since 2002. With over two decades of experience, more than 10,000 instruments delivered in the field, and customers such as Bajaj Auto, SKF India, and Bharat Forge, our solutions are built on proven industrial performance and reliability.

This article explains how precision gauging solutions improve manufacturing accuracy, reduce inspection time, and support modern production systems.

Precision measurement depends not only on instruments but also on how the component is presented for inspection. Even the most advanced gauges can produce inconsistent results if the part is not located correctly.
Gauging fixtures solve this fundamental challenge by ensuring:
Repeatable part positioning
Stable datum reference during inspection
Reduced dependency on operator skill
Consistent measurement conditions across shifts
This makes them essential for high-volume and high-precision manufacturing environments.

One of the most common causes of measurement error is inconsistent workpiece placement.

Many manufacturers still rely on universal or manually adjusted fixtures. These setups were not designed for specific components, leading to variation in positioning.

Even minor misalignment can significantly affect results in tight-tolerance parts.

Inconsistent measurement readings
Higher Gauge R&R values
False rejection of good parts
Difficulty achieving Cp and Cpk targets
Increased dependency on skilled operators

Application-specific gauging fixtures ensure every component is located using precision-engineered features such as:
Hardened locating pins
Datum-based referencing
Controlled clamping systems
This guarantees identical positioning for every inspection cycle.

As production volumes increase, inspection speed becomes as important as accuracy.

Manual alignment of components before measurement increases cycle time and reduces throughput.

Slower inspection cycles
Production bottlenecks
Increased operator fatigue
Higher inspection cost per part

Well-designed precision gauging solutions allow operators to:
Quickly load the component
Perform measurement instantly
Unload without readjustment
This significantly improves inspection efficiency in mass production environments.

Every component has unique geometry, tolerances, and inspection requirements.

Using a single fixture across multiple parts may seem cost-effective but often compromises accuracy and repeatability.

Improper part seating
Frequent adjustments
Increased setup time
Measurement disputes between operators

As a custom gauging fixture manufacturer in Pune, Versa Controls designs fixtures based on:
Component drawings
GD&T requirements
Production volume
Inspection strategy
This ensures each fixture is purpose-built for its application.

Inspection quality should not depend on operator skill.

Manual alignment and adjustment introduce variation between operators, affecting consistency.

Inconsistent inspection results
Training complexity
Higher rejection rates
Reduced confidence in quality data

Modern gauging fixtures are designed to be foolproof:
Self-locating designs
Quick-lock mechanisms
Error-proof positioning features
Ergonomic loading/unloading
This standardizes inspection across all shifts and operators.

Modern factories require data-driven quality systems.

Traditional inspection setups rely on manual recording, increasing the risk of errors and delays.

Lack of real-time data
Limited traceability
Delayed corrective actions
Manual documentation effort

Advanced precision gauging solutions integrate with:
LVDT probes
Air gauging systems
Digital displays
SPC software
MES platforms
Wireless data systems
This enables real-time monitoring and supports Industry 4.0 adoption.

Well-engineered gauging fixtures deliver measurable improvements in manufacturing performance:
Improved measurement repeatability
Reduced inspection cycle time
Speed: Lower operator dependency
Better Gauge R&R results
Higher Cp and Cpk values
Increased production throughput
Reduced inspection cost
Speed: Faster operator training
Improved product quality consistency
Seamless automation integration

Versa Controls is a trusted name in precision inspection systems and gauging fixtures in India.
With over 20 years of engineering expertise (established 2002), 10,000+ instruments in the field, and customers including Bajaj Auto, SKF India, and Bharat Forge, our solutions are proven in real-world production environments.
We offer:
Custom gauging fixture design
Precision machining and assembly
Speed:Integration with air and LVDT gauging systems
Digital inspection solutions
SPC and Industry 4.0 connectivity
On-site installation and commissioning
Operator training and calibration support
Lifecycle maintenance services
Whether you need a single fixture or a complete inspection station, we deliver engineered solutions tailored to your production needs.

Our fixtures are widely used across industries such as:
Automotive manufacturing
Bearing industry
Aerospace components
Defence manufacturing
Railway engineering
Medical device manufacturing
Heavy engineering
Industrial automation
They are suitable for both in-process and final inspection applications.

Looking for reliable gauging fixtures for your production requirements?

Whether you need a custom gauging fixture in Pune or a fully integrated inspection system, Versa Controls provides engineered solutions that improve accuracy, productivity, and quality consistency.

📧 Email: info@versacontrols.com
📞 Phone: +91-7722 02 0796

Gauging fixtures are a critical foundation of modern precision manufacturing. By ensuring consistent part positioning, reducing operator dependency, and enabling digital integration, they significantly improve inspection accuracy and production efficiency.

With decades of expertise and proven industrial experience, Versa Controls delivers custom gauging fixtures and precision gauging solutions that help manufacturers achieve reliable quality and long-term operational excellence.
